Nobody pays much attention to the piston rod seal in their brake master cylinder until it starts leaking. Even when it does leak it won't cause much more than carpet damage, unless you ignore it. When your brake master cylinder requires repair due to leakage or you want to take a proactive approach, the Marsh Brothers’ Cleveland Brake Master Cylinder upgrade/repair kit is the solution that will fix it once and for all. Like all Marsh Brothers products, our glands and seals are developed to last for the long haul.
Installation of the Marsh Brothers brake master piston rod seal offers the opportunity to practice preventative maintenance, by eliminating the risks associated with the typical failure modes of traditional O-rings used in the dynamic seal applications. Additionally, our advanced engineered polymer gland eliminates the possibility of metal-to-metal contact with the piston rod.

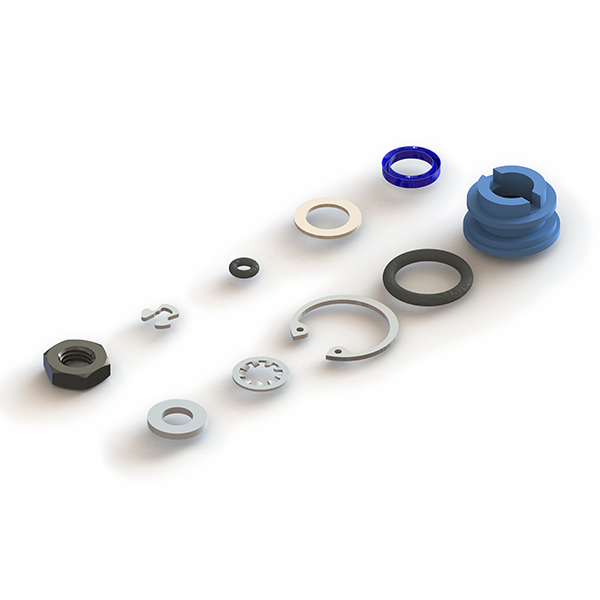

The Marsh Brothers Aviation Mooney (Aerostar/Cirrus) Cleveland Brake Master Cylinder upgrade kit contains all of the hardware to repair/upgrade your Mooney Cleveland Brake Master Cylinder. Additionally, the kit also includes tooling to aid in the re-assembly. The piston rod seal (AeroLas™-Flex) provided is a Marsh Brothers Aviation proprietary lip seal design and is manufactured from a proprietary elastomeric polymer. The Marsh Brothers Aviation AeroLas™-Flex replaces both the OEM O-ring and rod wiper. The kit also includes installation instructions, instructions for continuing airworthiness and an authorized release certificate.
Note: The Piston is not included in this kit.
Caution: Piston Rod Lip seal is made from Marsh Brothers proprietary material known as AeroLas™-Flex. AeroLas™-Flex is not compatible with phosphate ester hydraulic fluid, commercially known as Skydrol. Exposure to phosphate ester hydraulic fluid contamination will damage the seals.
|Piper Aerostar Models||Mooney Aircraft Corp.||Cirrus Models
|TCCA RDA No. C-RA22-016/D
Note 1: The Piston is not included in this kit.
Note 2: Kit Includes:
Installation tool (tapered bullet to expand seal).
|Item#||MBA Part #||Description||Quantity||OEM Cross Reference Part #|
|1||MS16625-4081||Internal Retaining Ring||1||155-01200|
|2||MBA-01-10025||Spring Seat/Wiper Washer||1||095-01300|
|3||MS28775-113||O-Ring (Piston Head, Gland Static)||1||MS28775-113|
|4||MBA-01-10021||Lip Seal (Piston Rod, Dynamic)||1||MS28775-012|
|6||MS28775-006||O-Ring (Piston Head Bypass)||1||MS28775-006|
||MS35333-40||Star Lock Washer
