Aerostar Seat Roller Repair Sleeve Kit

M-01-1002


Category: Accessories, Aerostar

Type: Kit



This kit includes the stainless steel sleeves. The self-lubricating polymer alloy bushings are not included in this kit. Please refer to M-01-1001 for the Aerostar Seat Roller Repair Bushing Kit.

Seats in the Aerostar are designed to roll on four aluminum rollers located at each seat corner. The rollers are made from a relatively soft aluminum running against steel sleeves, and are not supposed to be lubricated in accordance with the aircraft maintenance requirements. If the wear is uneven across the four rollers, the worn roller will not be able to support the seat which can cause the seat to bind making it difficult to move forward and backward.

Marsh Brothers AeroTough bushings are made of a self-lubricating AeroTough material that is designed to replace the aluminum rollers. Due to it's unique properties, AeroTough will run without wear for a very long time. No more metal on metal wear!

It is recommended that all four rollers in a seat be repaired at the same time, even if there is no evidence of wear. This single-seat repair ensures that all the rollers in the seat function in a similar and consistent manner.

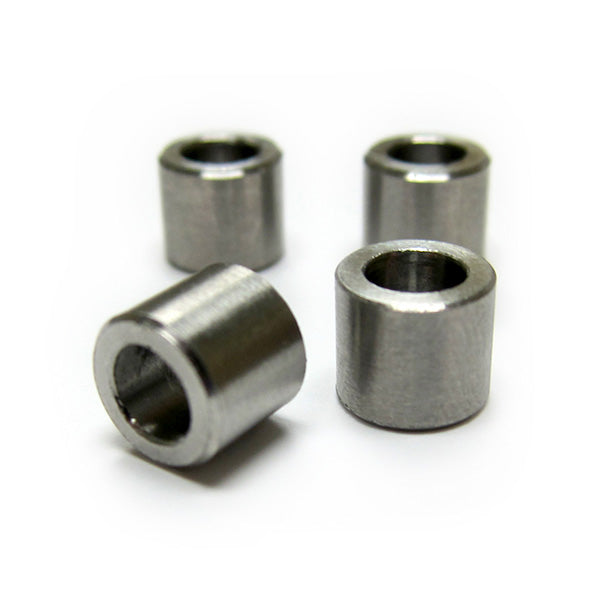

  • Stainless Steel Sleeves.
  • Provides means to repair worn or corroded seat roller assembly accordance with AMM provisions.
Kit Part # Description Quantity
M-01-1002 Seat Roller Repair Sleeve Kit

4
