Aerostar Engine Cowl Anti-Chafing Liner - 1 kit per engine cowl

M1036-3


Category: Aerostar

Type: Kit

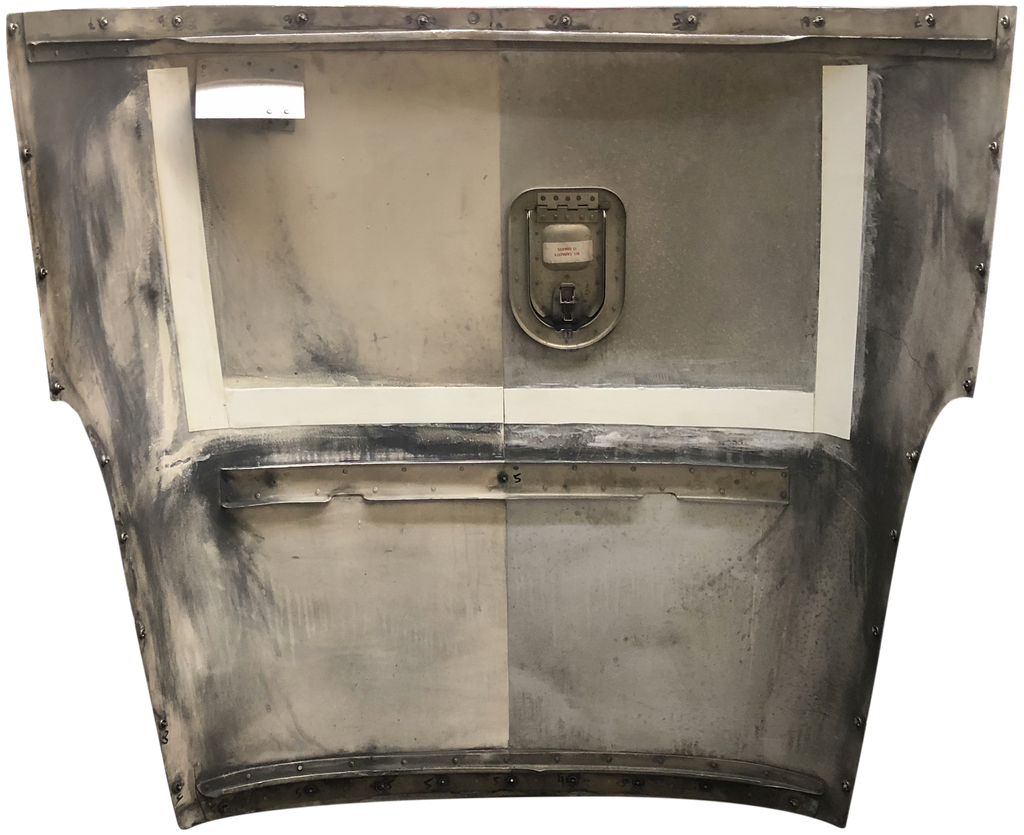

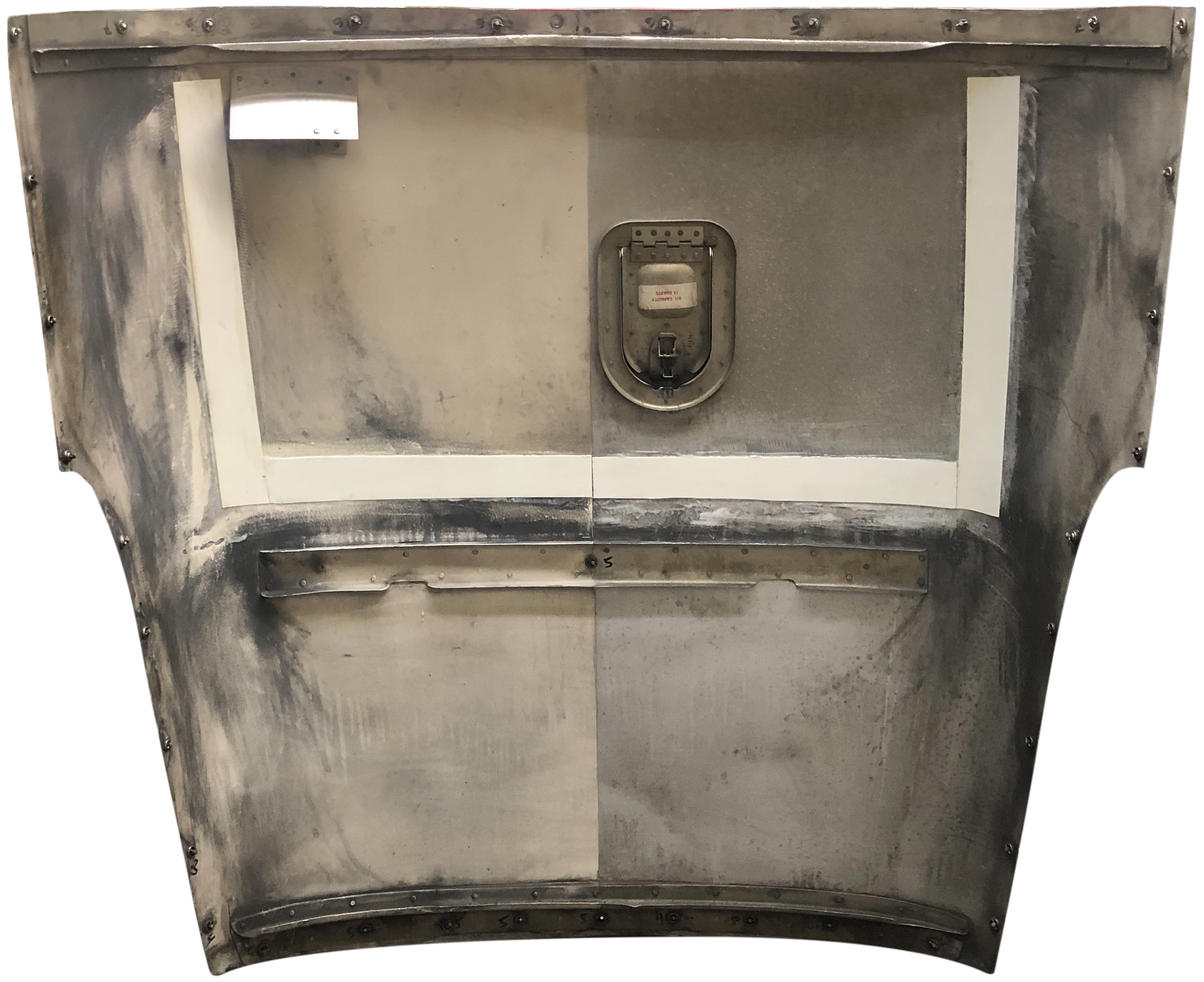

Marsh Brothers Aerostar Engine Cowl Anti-Chafing Liner kit (Chafe Protection) provides protection of the interior surface of the engine cowl where the engine airframe seals contact with the upper engine cowling assembly.

By providing a tough abrasion resistant surface made from Marsh Brothers proprietary material AeroLas-White, wear on the aluminum upper engine cowl is eliminated.

Unlike most other chafe protection material available our anti-chafing liners do not have an adhesive backing. Instead, they are bonded in place using 3M DP420 two-part epoxy (not included in the kit). This results in a significantly stronger bond.

  • Anti-chafing liners are 2" x 18" x 0.033" each and sized to approximately fit, only minor trimming may be required. See installation instructions for more information.
  • Anti-chafing liners are made of AeroLas-White, our flexible, tough and abrasion resistant self-lubricating polymer.

Piper Aerostar Models

M1036-3





PA-60-600
PA-60-601
PA-60-601P
PA60 602P
PA60 700P
Item#  MBA Part # Description Quantity OEM Cross Reference Part #
1 M1036-3 Anti-Chafing Liners 2" x 18" x 0.033"
4 NA



Note: 1 kit does 1 engine cowl. A full shipset is 2 kits.
