Aerostar Brake Bushing Kit


Category: Aerostar

Type: Kit

Main landing gear brake bushing kit from Marsh Brothers Aviation is for all models of Aerostar aircraft operating the Cleveland Brakes (Note: This kit is not compatible with the Goodyear Brakes). Avoid unnecessary and costly repairs by installing AeroTough® GF polymer bushings. This preventative maintenance solution will ensure that you will never have the complications with seized bushings that traditional metal bushings can exhibit.

Lifetime lubricated AeroTough® bushings prevent problems:

  • Eliminate anxiety about damages to the supporting structure.
  • Zero risk of corrosion between sleeve and bushing.

Be proactive: The cost to repair greatly exceeds the price of prevention. Don’t wait for disasters to occur. Make the change now!

An essential part of safe aircraft operation is having functional brakes. Corrosion on the brake anchor bolts can lead to sticky brakes causing overheating or worse jammed brakes. Both of these conditions can cause brake failure.

  • The AeroTough® GF polymer brake bushing kit eliminate the possibility of corrosion leading to brake failure.
  • Approved for installation in U.S. registered aircraft by Federal Aviation Administration Supplemental Type Certificate # SA03484NY. Click here
  • Approved for installation in Canadian registered aircraft by Transport Canada Supplemental Type Certificate # SA14-43.  Click here
  • List of approved Aerostar models: 600, 601, 601P, 602P and 700P.

The following kit contains:

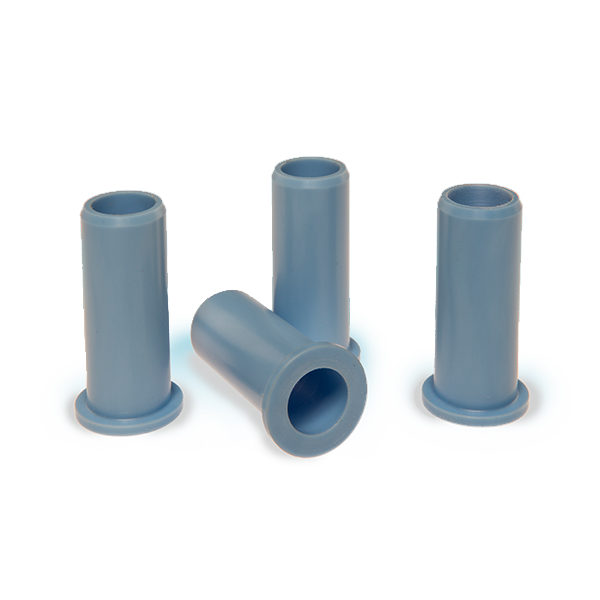

  • 4 MBA10019 brake bushings within the Cleveland Brake Assembly (30-93, 30-93A, 30-93B, 30-93C, 30-93D, 30-93E, 30-145)
